Nevada Gold Care & Maintenance

Column Gate Spacing Adjustment

Keep your Nevada Gold in top performance by performing seasonal care and maintenance.

Your model of the Nevada Gold Pull Tab Dispenser has been manufactured to exceed mechanical and electronic standards. The following information will assist you in the care and maintenance of your unit.

  • Wipe the unit with a damp cloth and a drop of liquid fabric softener to keep it looking new. Do not use any abrasive cleaning materials or solvents to clean your model.
  • Handle any removed parts gently and carefully. Dropping or mishandling parts can damage electronic components.
  • Use plastic cleaning implements or a soft cloth to remove dust from inside the unit. Metal tools can damage electronic parts.
  • Use light lubricants and precision oiling implements to lubricate the gears, shafts and the chute door.
  • Use Compressed air duster to blow out any dust or lint.

Column Gate Spacing Adjustment Instructions

As seasons change, climate conditions within your establishment can have an effect on paper pull tabs. It is suggested that you make gate spacing adjustments part of your seasonal Nevada Gold care and maintenance schedule. Use the instructions below, download the instructions PDF, or watch the instructional video to make your Column Gate Spacing Adjustments.

Nevada Gold Gate Adjustment Diagram
1

Column Gate Spacer Gauge

2

Back Roller

3

Gate Height Adjustment Nuts

4

Ticket Gate Arms

Instructions:

Step 1

Open the console door and the hopper door. With the column empty of tickets, turn the wheel so the groove on the back roller is not positioned directly under the gate.

Step 2

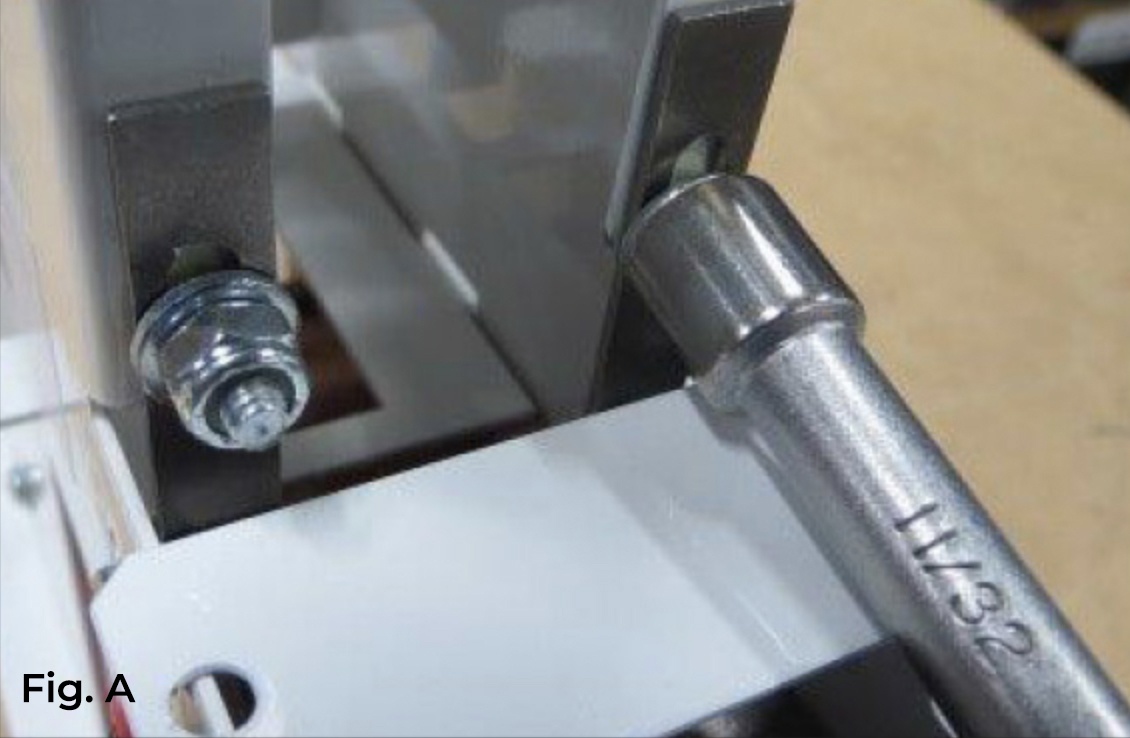

Loosen the two gate height adjustment nuts using a 11/32 socket.

Step 3

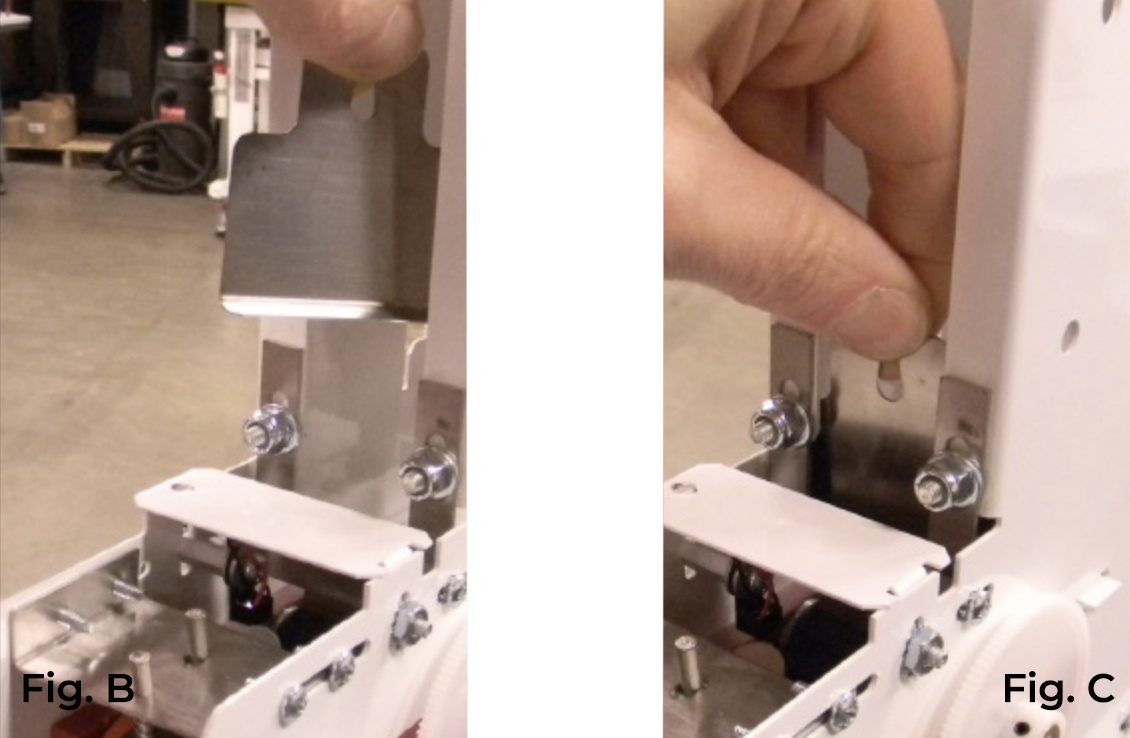

Insert the Column Gate Spacer Gauge into the column so that the Gauge is behind the gate and the bent tab is facing forward. See Figure B and Figure C.

Step 4

Carefully turn the gear towards you so the bent tab of the Gauge rests under the gate and above the roller.

Step 5

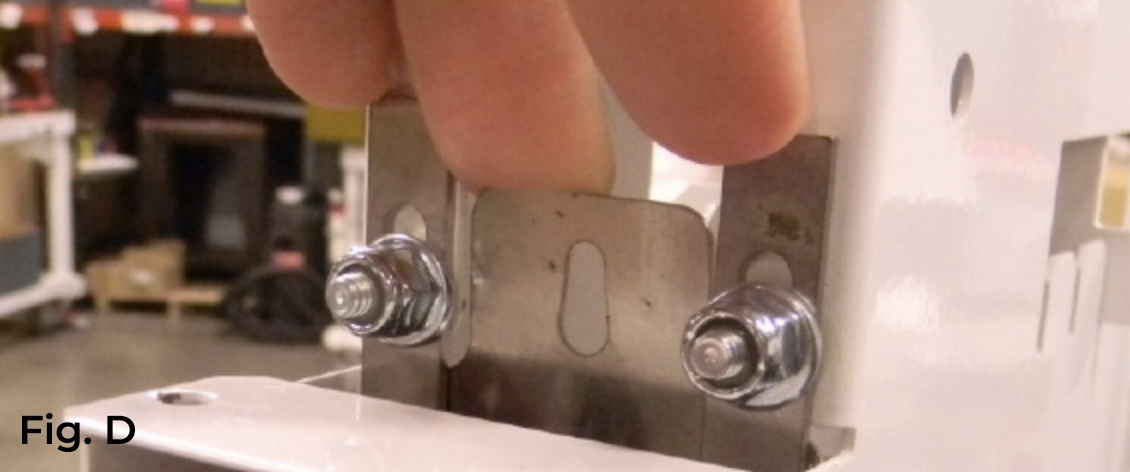

Press down on the gate, and hold the Spacer Gauge forward while tightening the gate height adjustment nuts. See Figure D.

Step 6

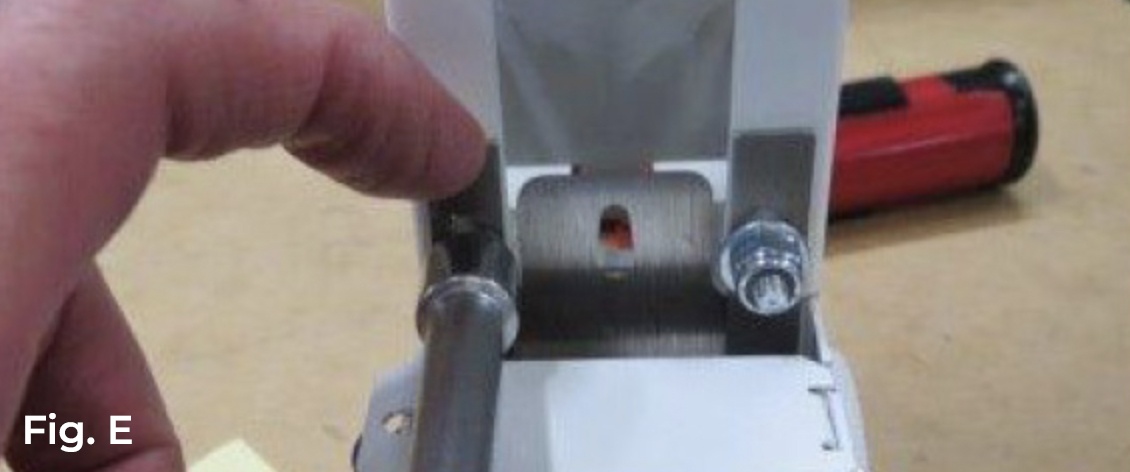

Using the 11/32 socket tighten the nuts gradually, alternating from side to side to ensure that the edge of the gate stays parallel with the ticket. Do not over tighten. See Figure E.

Step 7

Turn the gear back to release the Column Gate Spacer Gauge and lift it out.

Step 8

Test vend tickets from the column to ensure that the correct number of tickets dispense. (See page 25 of the Nevada Gold Operations Manual for testing instructions.)
